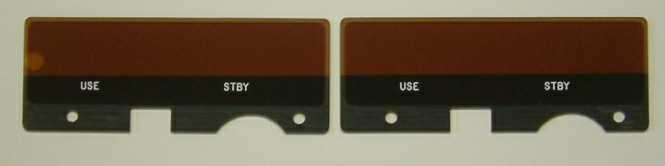

King KX155 Faceplate Lens Inserts

These are KX155 lens replacements. All of Aircraft Engravers’ replacement lenses are to bring back the readability of the frequency display to a clear crisp look that is expected which had been lost over the years due to sun exposure and age.

Price $99.00

Why are Aircraft Engravers lenses better than all other competitors?


NOTE: This item is NOT PMA’d and can NOT be installed in US Certified aircraft unless the proper FAA paperwork is completed. Contact your local avionics shop or AP for more information.

King KX155 faceplate lens insert installation directions

Before you begin: Check to see if you received the proper KX155 lens inserts. Are the numbers the same as your radio? Does it fit correctly? Although the holes and text will be the same, many faceplate manufacturers made different versions of the same faceplate. (Just to make life a little more interesting)


  1. These KX155 faceplate inserts are NOT PMA’d and CAN NOT be installed in US Certified aircraft unless the proper FAA paperwork is completed. The FAA is very strict on using non-PMA’d parts in certified aircraft. Contact your local avionics shop or AP for these requirements.
  2. Have this insert installed by an FAA certified avionics shop if the unit is to be installed in a US Certified aircraft. If you do not have all the proper tools, are not a qualified technician or your not sure you are capable of doing this job, seek expert advise.
  3. Remove the 4 screws holding the faceplate to the unit and remove the faceplate.
  4. Pop out the old KX155 lenses.
  5. If your faceplate needs painting continue to the next step, otherwise go to #10
  6. Sand down the faceplate for good paint adhesion.  It may be necessary to strip the paint completely.  Pay special attention to the trim and and text.  We recommend a finer grit sand paper so you don’t remove the text and for a cleaner look towards the end of the process.
  7. Spray the faceplate lightly with black primer and paint the faceplate with a quality paint such as Krylon's® 1613 Semi-Flat Black paint.  Use a primer that is the same brand as the black paint.  Let it dry completely.
  8. Lightly scrape or sand the trim and text to bring out the silver aluminum color.
  9. Spray the faceplate with a matte clear coat such as Krylon's® 1311 Matte Finish paint and let dry.
  10. Install the new KX155 lenses.  Make sure the lens with the light sensor relief is positioned on the correct side of the faceplate.  We recommend dabbing a little silicone glue in the corners to keep the lens from vibrating in the aircraft.
  11. Install the faceplate onto the unit.
  12. Tell all your aircraft buddies about Aircraft Engravers and the great products we make.

Aircraft Engravers return policy.


We will give you a 100% refund of the purchase price minus any shipping charges for any faceplate that is returned to Aircraft Engravers. This is for any reason that you are dissatisfied or can’t comply with any FAA rules or regulations.

AKA - Also Known As - KX155 Lens, KX-155 Lens, KX 155 Lens, KX155 Lenses, KX-155 Lenses, KX 155 Lenses, King KX155 Lens, King KX-155 Lens, King KX 155 Lens, King KX155 Lenses, King KX-155 Lenses, King KX 155 Lenses, KX155 lens replacement, KX155 lens for sale

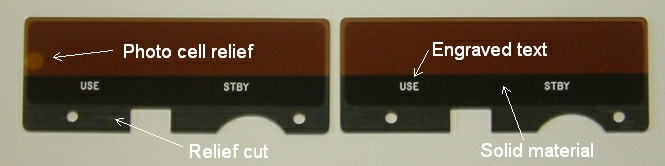

Material - Made from 0.062” amber plastic with a relief cut and engraved text.  A portion of the back surface is painted black. The text is engraved and filled with white paint.
