Rocker Switch & Annunciator Engraving

Aircraft Engravers has the ability to engrave a wide variety of Rocker Switch Operators. Also known by different names, even within a company with multiple product lines they may be referred as buttons, rockers, operators, actuators, switch covers, switch cap and annunciators. View the image gallery below with a variety of switches that we can engrave and a few we can’t.


Engraving is a permanent solution to answer the question on how to label your rocker switches and annunciators. The engraving process actually cuts a “V” shaped groove in the plastic approximately .007” deep which is filled with a contracting paint to give the most durable, highest contrast of any other type of marking methods. This type of engraving will last the life of the switch. Other processes such as laser engraving, hot stamping and the P-Touch hand labeler all have their limitations so Aircraft Engravers chooses not to use those processes.

Aircraft Engravers can engrave many types of rocker switches and annunciators as shown, however, we are capable of engraving many other styles that are not shown also. Please send good photos by email for any switch operator that is not displayed to see if it’s a switch that can be engraved by Aircraft Engravers. They can be either detachable operators or those that are riveted to the switch.


Aircraft Engravers stocks the AML54 rocker switch operators along with some of the AML51 square and rectangle operators also. To see which operators we keep in stock see the Honeywell Switch List below and which switches they’re used on.


Prices vary depending on the switch type, text and graphics layout and scheduling requirements


Aircraft Engravers does not sell the whole switch, just the operators for those Honeywell switches. All other types will have to be supplied by the customer. See the PDF for more information on the Honeywell AML switches.

Photos &

Images

Operator/

Annunciator

Aircraft Engravers’ prices for operators only

To be used in

Switch Series

Detachable/

Riveted

Where to purchase


AML54-F10W - White

$3.20

AML14, AML24,

AML34

Detachable

Aircraft Engravers

(In Stock)


Octopart.com


Honeywell.com

AML54-F10R - Red

$4.60

AML54-F10G - Green

$4.40

AML54-F10Y - Yellow

$5.30

AML54-F10B - Blue

$5.20

AML54-F10K - Black

$5.30

AML54-F10A - Amber

AML54-F10L - Gray

See where to purchase >>>>

AML14, AML24,

AML34

Detachable

Octopart.com

Honeywell.com


AML51-C10W - White Sq. .19”

$2.25

AML11, AML21, AML31, AML41

Detachable

Aircraft Engravers

(In Stock)

Octopart.com

Honeywell.com

AML51-F10W - White Rect. .19”

$3.05

AML51-H10W - White Rect. .32”

$5.10


AML51-A10

AML51-B10

AML51-E10

See where to purchase >>>>

AML11, AML21,

AML31, AML41

Detachable

Octopart.com


Honeywell.com


(1 piece Toggles, 1 of 2 pieces)

AML53-E10 (Series)

See where to purchase >>>>

AML14, AML24,

AML34

Detachable

Octopart.com


Honeywell.com


(2 piece Toggles)

AML54-T10 (Series)

AML54-T30 (Series)

AML56-T10 (Series)

See where to purchase >>>>

Divided operators

AML16, AML26, AML33,AML36

Detachable

Octopart.com


Honeywell.com


(2 piece Rocker)

AML55-N (Series)

AML55-T (Series)

See where to purchase >>>>

Paddle switches

AML13, AML15,

AML23, AML35,

Detachable

Octopart.com


Honeywell.com


Honeywell 12PA5-W - White

Honeywell 12PA5-R - Red

Honeywell 12PA5-Y - Yellow

Honeywell 12PA5-BK - Black

Honeywell 12PA5-G - Green

Honeywell 12PA5-BL - Blue

Honeywell 12PA6 -Translucent

See where to purchase >>>>

1TP12-1, 1TP12-3, 1TP12-7, 1TP12-21,

1TP201-2 thru -8

2TP12-1,

2TP12-7, 2TP12-70

2TP1-1 thru -5,

2TP16-1

Detachable

Octopart.com


Honeywell.com


Honeywell MML24 Series

See where to purchase >>>>


Detachable

Octopart.com


Honeywell.com

Electromechanical, AML53-T10GG - Honeywell - onlinecomponents.com

Honeywell AML54 & AML51


Custom engraved AML54 & AML51 rocker switch and annunciator operators per your drawing. Remember that each operator/annunciator has to be labeled so the user knows what it’s controlling and it’s status by looking at it. You can’t leave unused switches blank, they should be marked with OFF, INOP, SPARE or NOT USED.


Most cockpit switches are viewed at arms length so the text shouldn’t be too small to read clearly or compressed to tightly that the letters blend together making them hard to read.  Five letters wide is the standard without any compression, but a word like AVIONICS has the A fit under the V and the two I’s don’t take up that much space, however, MASTER has to be compress almost the same amount but has two less letters.

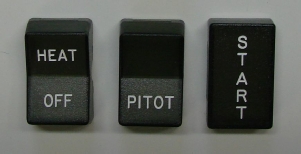

SPECIAL ORDER - An illuminated black operator with white text

Engraving Pricing ONLY

Text on top surface only

$1.00

One face only

$5.75

One face W/ OFF on top

$6.75

Two faces

$8.75

Two faces W/ OFF on top

$9.75

Special & Vert. or Horz. layout

$17.00

Aircraft Engravers specializes in engraving the operators for the Honeywell rocker switches per your requirements.



Print order form

Print order form

Print order form

Since there are many variations to each switch type. Not all operators or switches are listed here, just some of the more common ones. We haven’t found an AML switch that we couldn’t engrave.






Piper Rocker Switch Operators


We often get calls and inquiries regarding the Piper 654-489 switch caps.  These are similar to the AML switch caps above, but the Piper covers are a larger size.  We engrave these switch covers also and will be happy to do so for you.  Unlike the AML covers, we do not keep a stock of these on hand, but you can find them at this link.  You can use the order form for the AML operators when you send in your Piper covers to describe how you want them labeled.


We have seen these blanks referred to under another P/N: PAC 8184622-01.
